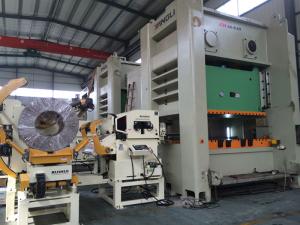

Straightening coil machine, unwinding machine, Dongguan Ruihui metal straightening machine
The standard material of the heavy-duty material frame is simple in construction, low in cost and good in blocking effect. It has been widely used, but there is also a significant shortcoming, that is, it is only suitable for the limit of the width of the roll. Once the width of the roll is large, there will be problems such as long installation time, complicated and complicated debugging, and poor material blocking effect. In this case, the retaining arm needs to be replaced to limit the position.
The stopper arm is a device specially produced by Ruihui Machinery to replace the material A-type iron for the material frame material limit. It is driven by the cylinder to realize fully automatic material, good material blocking effect, easy operation and less time-consuming. It is especially suitable for the limit of various wide-format coils.
The Ruihui heavy-duty material frame retaining arm is composed of two upper and lower block gear sets, a retaining wheel device, a moving device, a frame body and a telescopic cylinder. The upper and lower block materials correspond to the upper and lower edges of the plate material roll. The wheel device can be moved by the moving device to be independent or away from the end side of the plate material, and the bar of each wheel device can be moved by the respective telescopic cylinder to lift and yaw independently.
Therefore, when the sheet material is rolled up, the stopper rods of all the wheel-stop devices can be raised upward to prevent the sheet material roll from striking the stopper rod to reduce unnecessary damage, and when the sheet material is wound on the heavy-duty material rack, the retractable reel After that, the bar of each wheel stop device is lowered and adjusted by the respective moving device, so that the roll of the plate material can be restricted to the feeding position, and when the bar of the wheel stop device is close to the roll of material of the plate, it can be utilized. The elastomer of the buffer unit produces a buffering effect, which is simple and convenient and effectively extends the service life.
Specification:
| Model | MAC2-400 | MAC2-500 | MAC2-600 | MAC2-800 |
| Stock Width(mm) | 50-400 | 50-500 | 50-600 | 50-800 |
| Stock Thickness(mm) | 0.3~3.2 | 0.3-3.2 | 0.3-3.2 | -3.2 |
| Max.Coil Weight(kg) | 3000 | 3000 | 3000 | 5000 | 5000 | 7000 |
| Max.Coil O.D.(mm) | 1200 | 1200 | 1200 | |
| Coil I.D.(mm) | 8 | 8 | 508 | 508 |
| Feed Length(mm) | ~500* | ~500* | ~500* | ~500* |
| Max. Line Speed(m/min) | 16-24 | 16-24 | 16-24 | 16-24 |
| Work Roll Number(pieces) | upper 6
lower 5 | upper 6
lower 5 | upper 6
lower 5 | upper 6
lower 5 |
| Feed Roll Number(set) | 1 | 1 | 1 | 1 |
| Main Motor(kw) | AC2.9 | AC2.9 | AC4.4 | AC4.4 |
| Mandrel Expansion | hydraulic | hydraulic | hydraulic | hydraulic |
| Reel Motor(kw) | 1.5 | 1.5 | 1.5 | 2.2 | 2.2 | 3.7 |
| Power(V) | 3 Phase 220V/380V/50HZ |
| Operating Air(Mpa) | 0.49 | 0.49 | 0.49 | 0.49 |
Straigtening performance:
| tock Thicknees (mm) | Stock Width (mm) |
| 0.3 | 400 | 500 | 600 | 800 |
| 0.4 |
| 0.6 |
| 0.8 |
| 1.0 |
| 1.2 |
| 1.4 |
| 1.6 | 470 | 470 |
| 1.8 | 400 | 400 |
| 2.0 | 360 | 360 |
| 2.3 | 300 | 300 | 300 | 300 |
| 2.5 | 230 | 230 | 230 | 230 |
| 2.8 | 150 | 150 | 150 | 150 |
| 3.2 | 110 | 110 | 110 | 110 |
*1:(Pneumatic):Option in case of pneumatic mandrel expansion is provide
1. Pre-Sales Service:We have professional designers to meet the different requirement of our customers.
2. After-Sales service:We have an efficient team to meet 24*7 all day service.
3. Full-Service:Actively cooperate with customers to deal with problems in equipment using.
4. Engineers can provide service machinery overseas.
